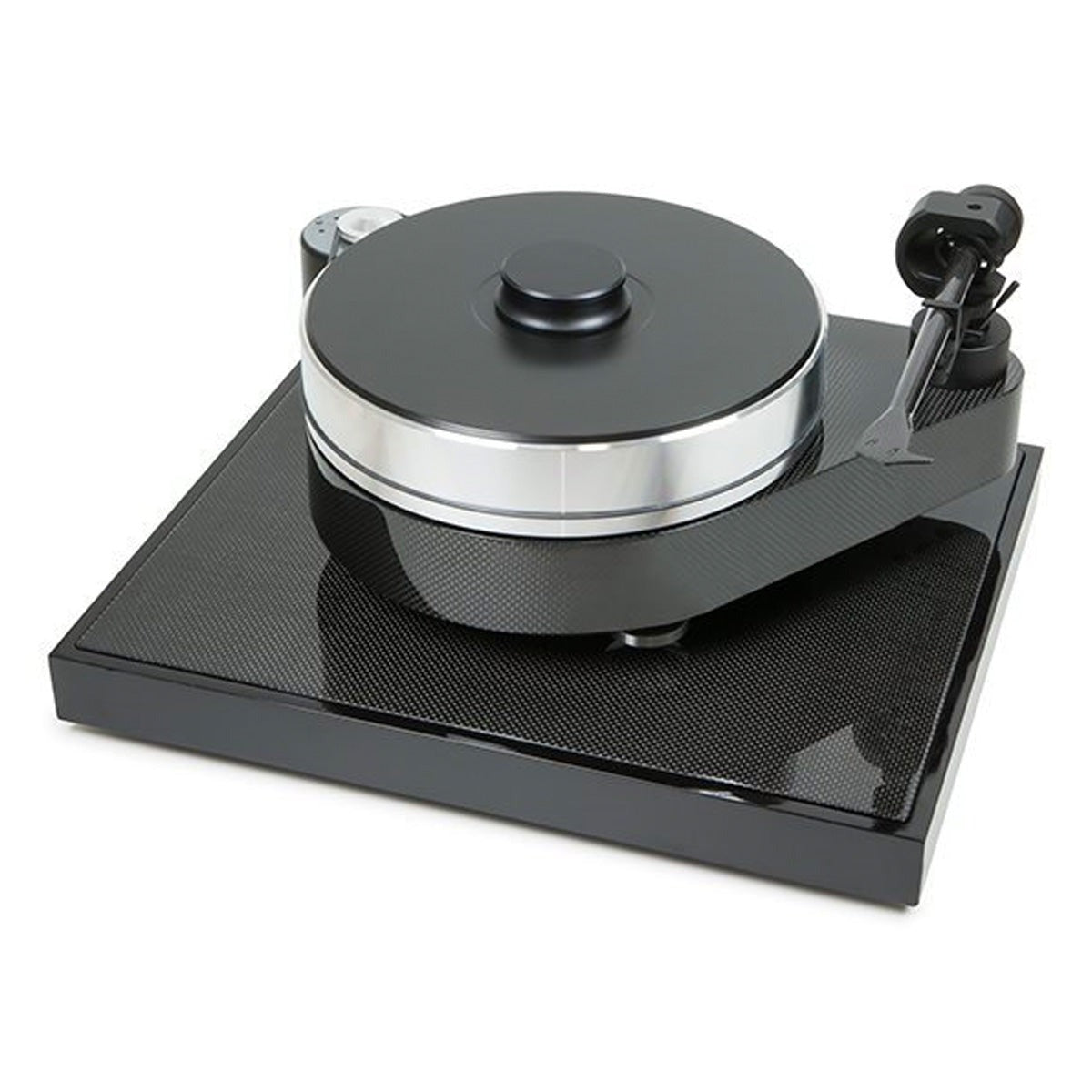

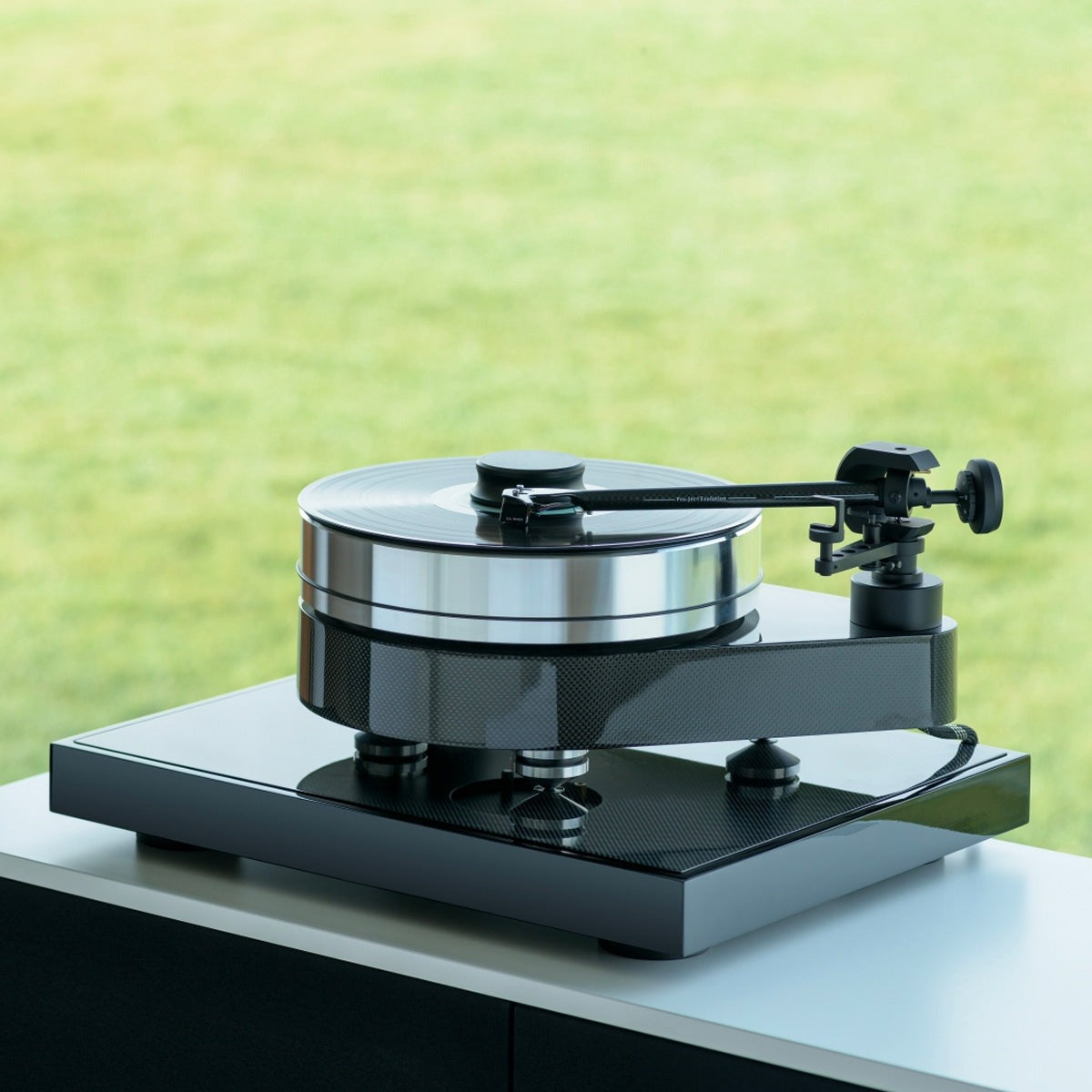

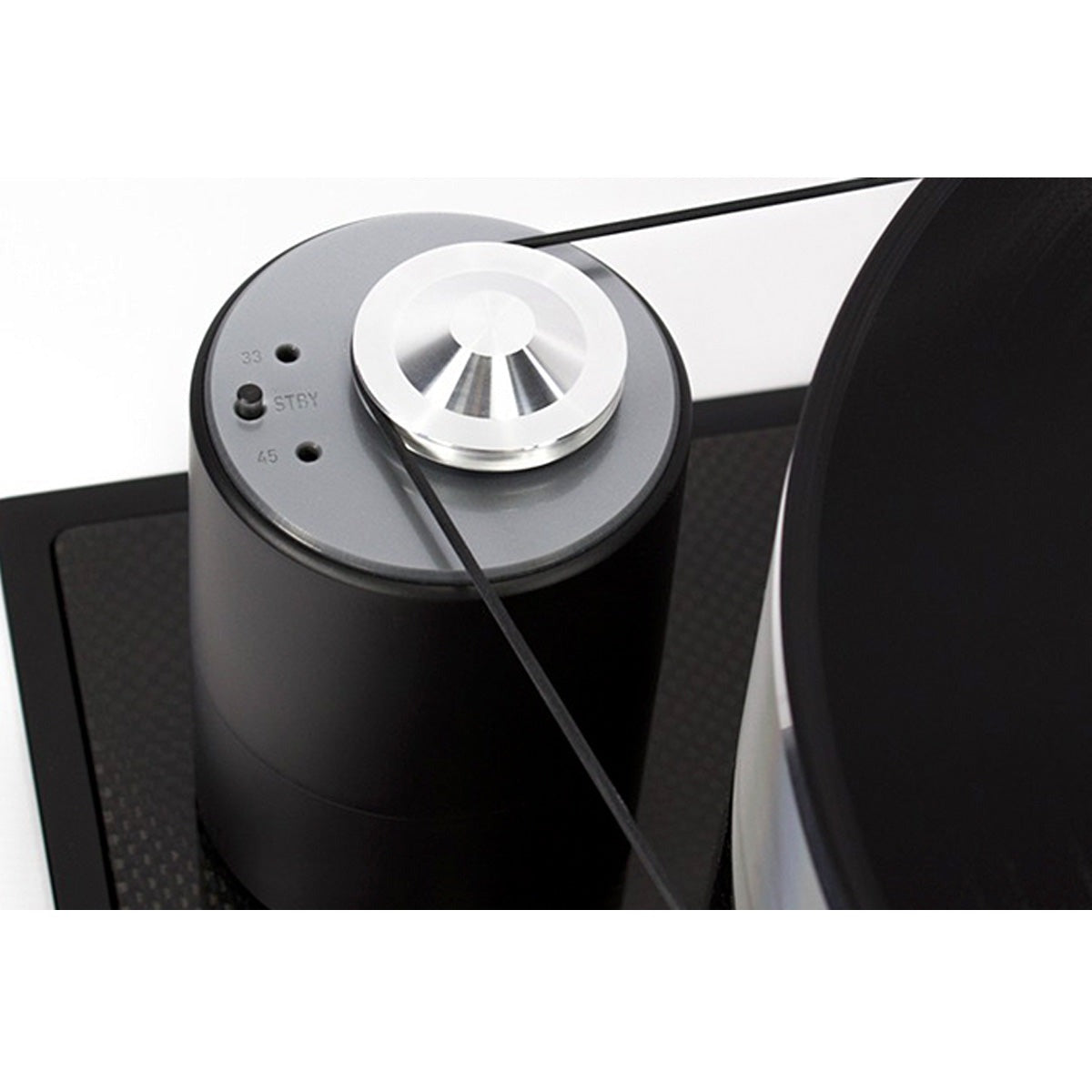

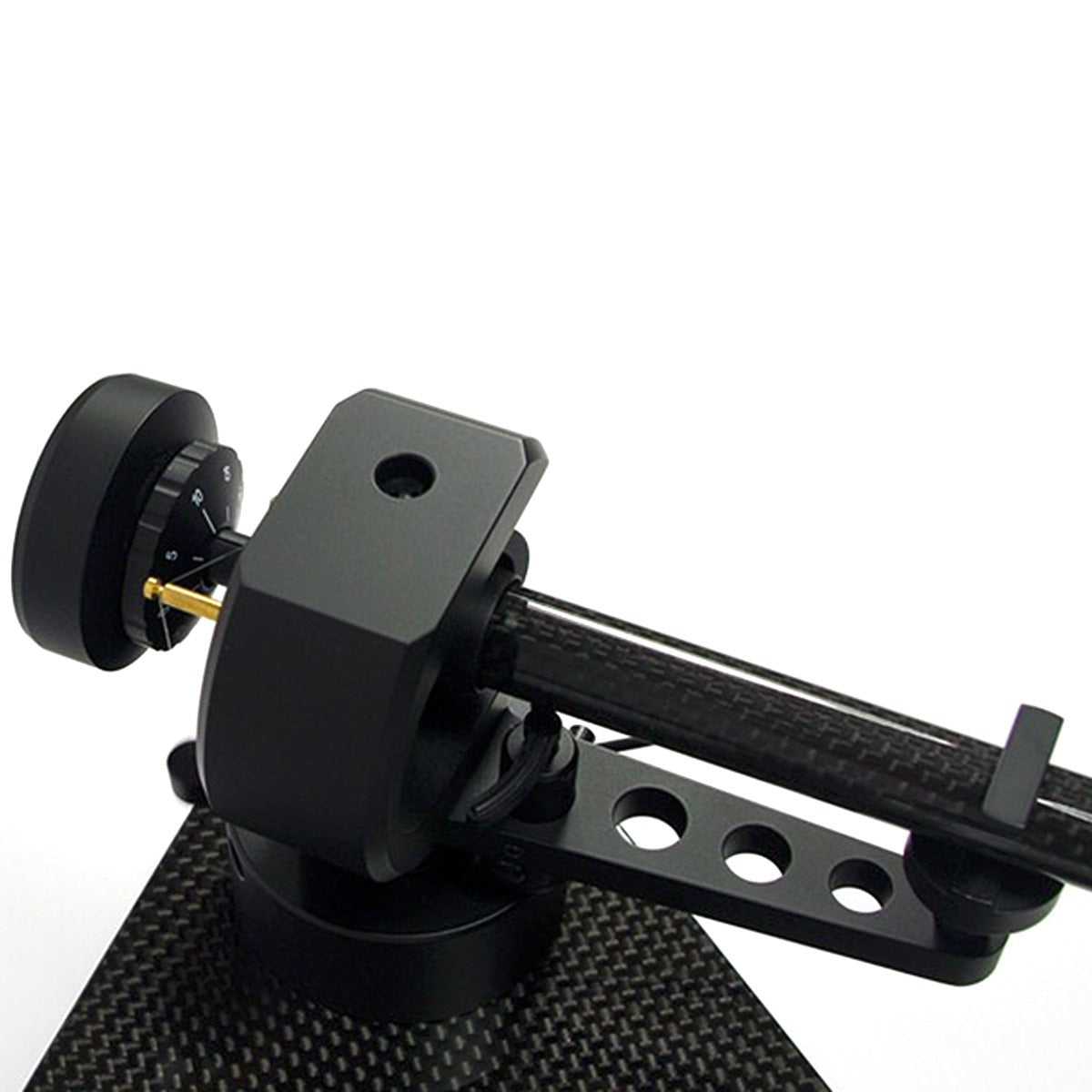

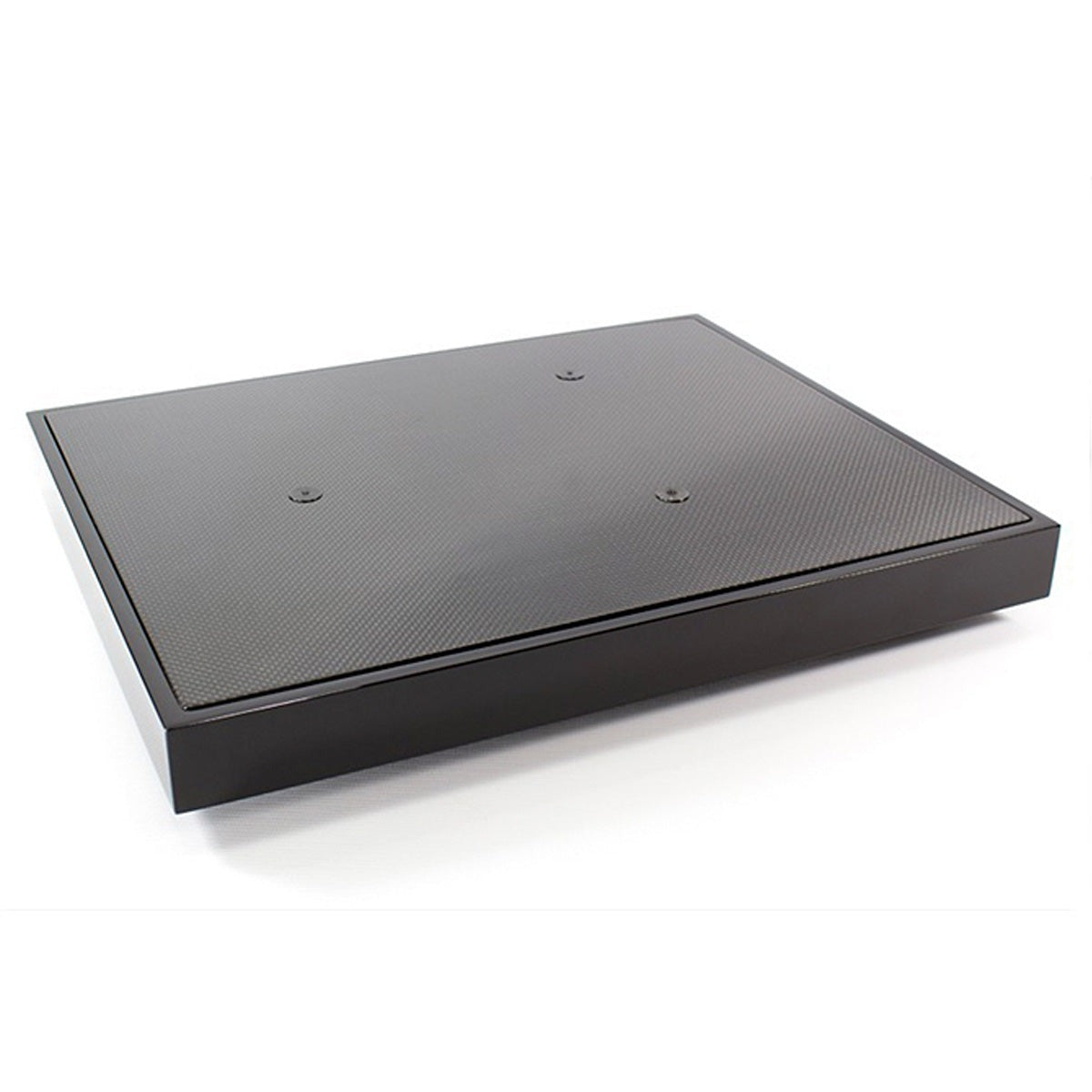

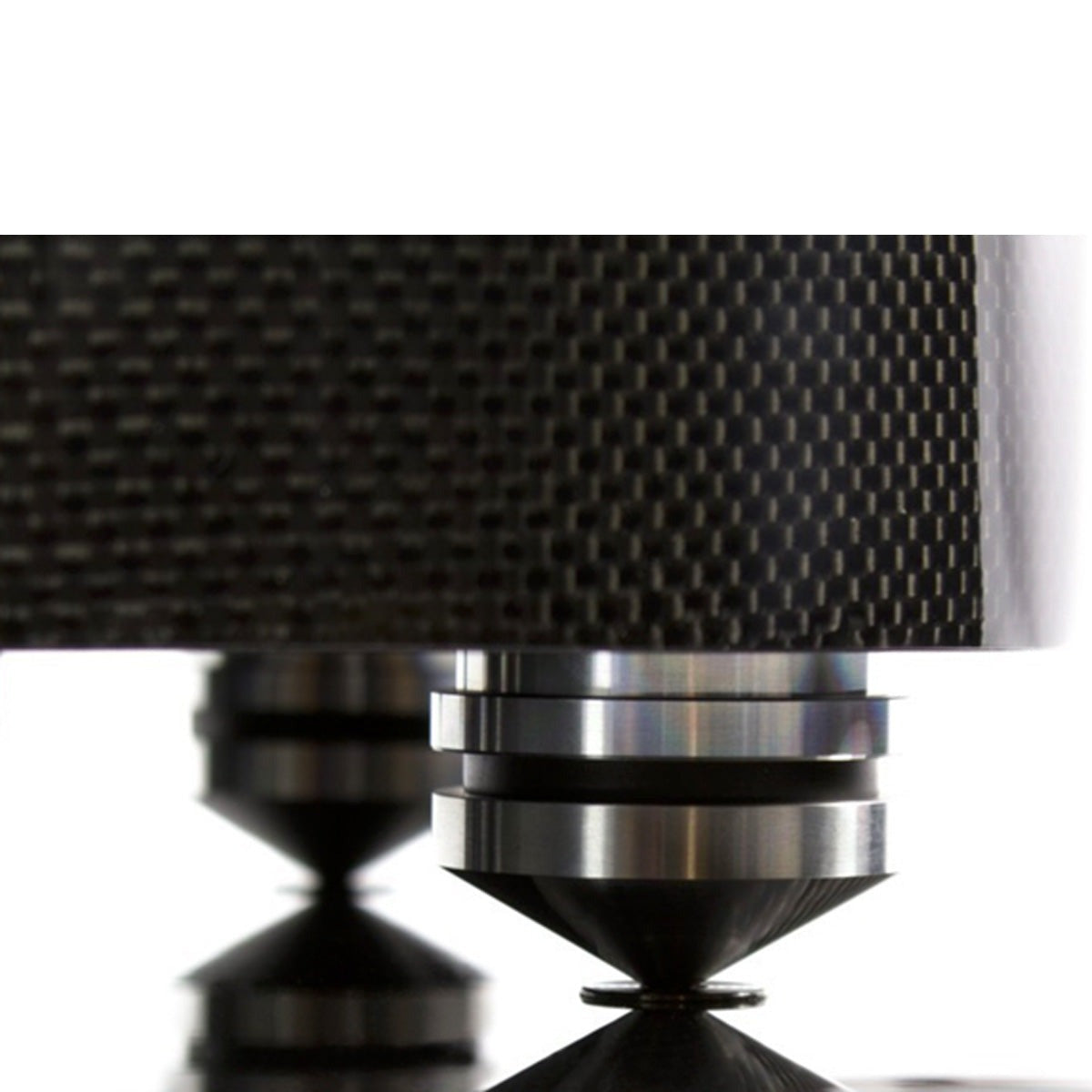

Thanks to extensive research and development, we have now elevated our classic RPM design to an even higher level. The RPM 10 Carbon uses a new extra-heavy chassis which features a special CNC-machined MDF base with resin-coated steel pellets to form an extra-heavy and precise sandwich construction. A special, complex heat treatment and carbon surface coating ensures superior low resonance levels. The mass-loaded chassis is effectively decoupled from its surface using magnetic feet. Combined with a new special polished aluminum platter with internal TPE damping and a vinyl layer on top, the inverted ceramic main bearing delivers an absolutely stable turntable speed with extra-low rumble due to the magnetic suspension of the platter. The heavy outboard motor unit is equipped with precise motor control and features a built-in switch between 33 & 45 rpm. Last but not least, the no-compromise 10" EVO tonearm with conical carbon-fiber arm tube and inverted bearing design ensures perfect tracking, even with demanding cartridges. Highly flexible, top-grade copper internal wiring is used. The RPM 10 Carbon is delivered with Ground it Carbon equipment base and top-grade 5P phono cable "Connect It CC" with RCA plugs (XLR as an option). An acrylic dust cover, "Cover it 1", is also available.
Specifications
Speed: 33, 45 rpm (electronic speed change)
Drive: Belt drive
Platter: 10.4 kg aluminum (300mm diameter)
Main Bearing: inverted stainless steel with ceramic ball/plate
Wow & Flutter: 33 +/- 0.11% 45: +/- 0.10%
Speed Drift: 33: +/- 0.01% 45: +/- 0.01%
Signal to Noise: -75dB
Tonearm: 10" Carbon EVO
Effective Arm Length: 254 mm
Effective Arm Mass: 8.5 g
Overhang: 16mm
Tracking Force: 10 - 35mN
Supplied Counterweights: 5 - 7.5g / 7 - 10g / 9 - 11g / 10 - 14g
External Power Supply: 15 volts DC / 1.6A
Power Connection: 110/120 or 230/240 Volt - 50 or 60 Hz
Power Consumption: 15 watts max
